PAINT FACILITIES:
Surface treatment is made from automated system by hanging parts with plating jigs and cation jigs. Zinc-nickel alloy plating, and CED painting are treated on the surface according to their usage.

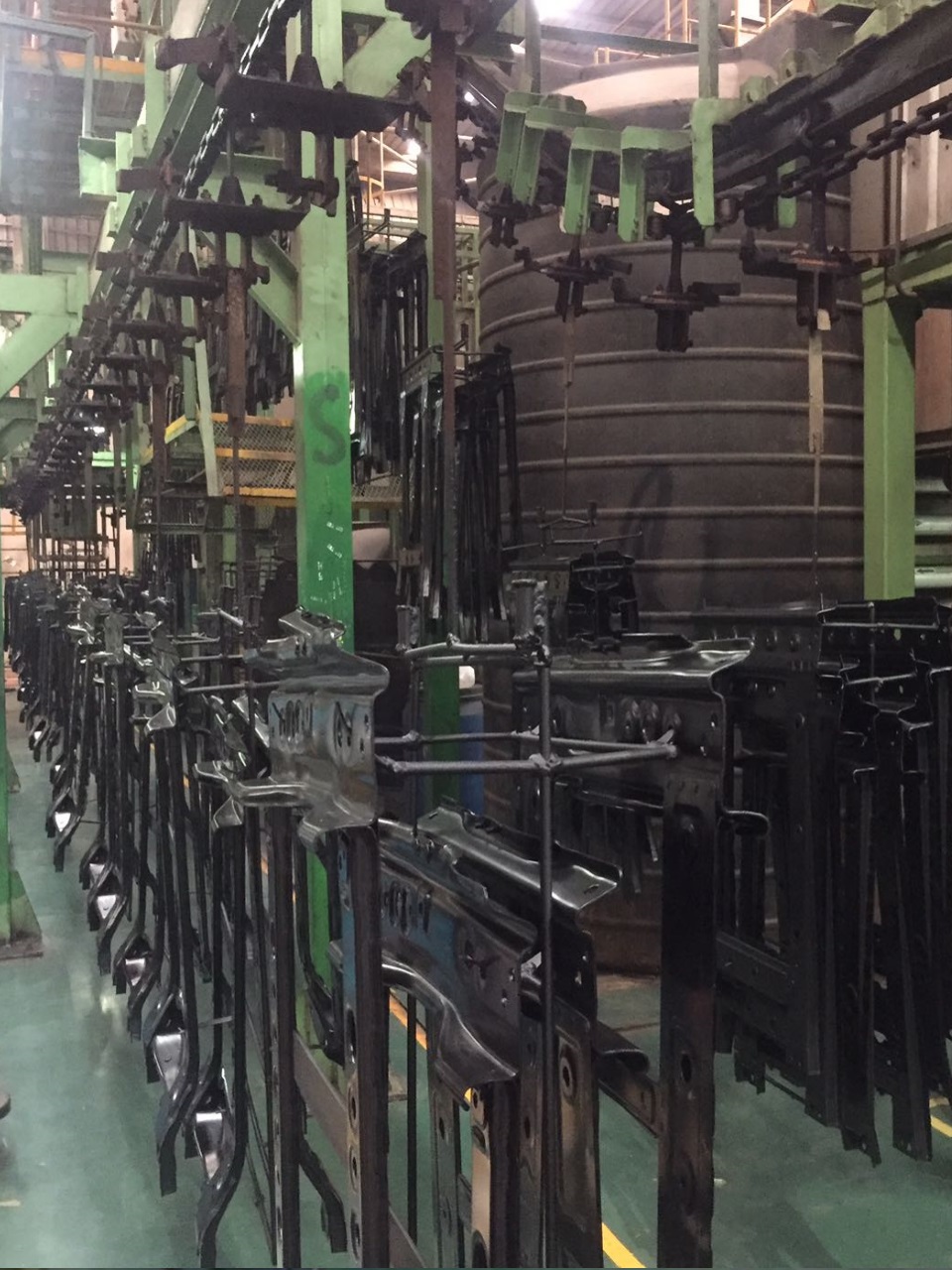

ED Paint Shop Machine:
CED MACHINE LINE
MACHINE DETAILS:
    • 11 Tanks Pretreatment Process i.e.Phosphating Process
    • 20 Kiloliter capacity ED Tank for CED Coating.
    • Overhead Chain conveyor system common for all process.
    • Cycle time of the conveyor is 3 Hrs. and 44 mins.
    • Conveyor length in side of Baking Oven is 40 Meter.
    • Fume Extraction System for all process.
    • Effluent Treatment Plant
    • Camel shape Baking Oven.

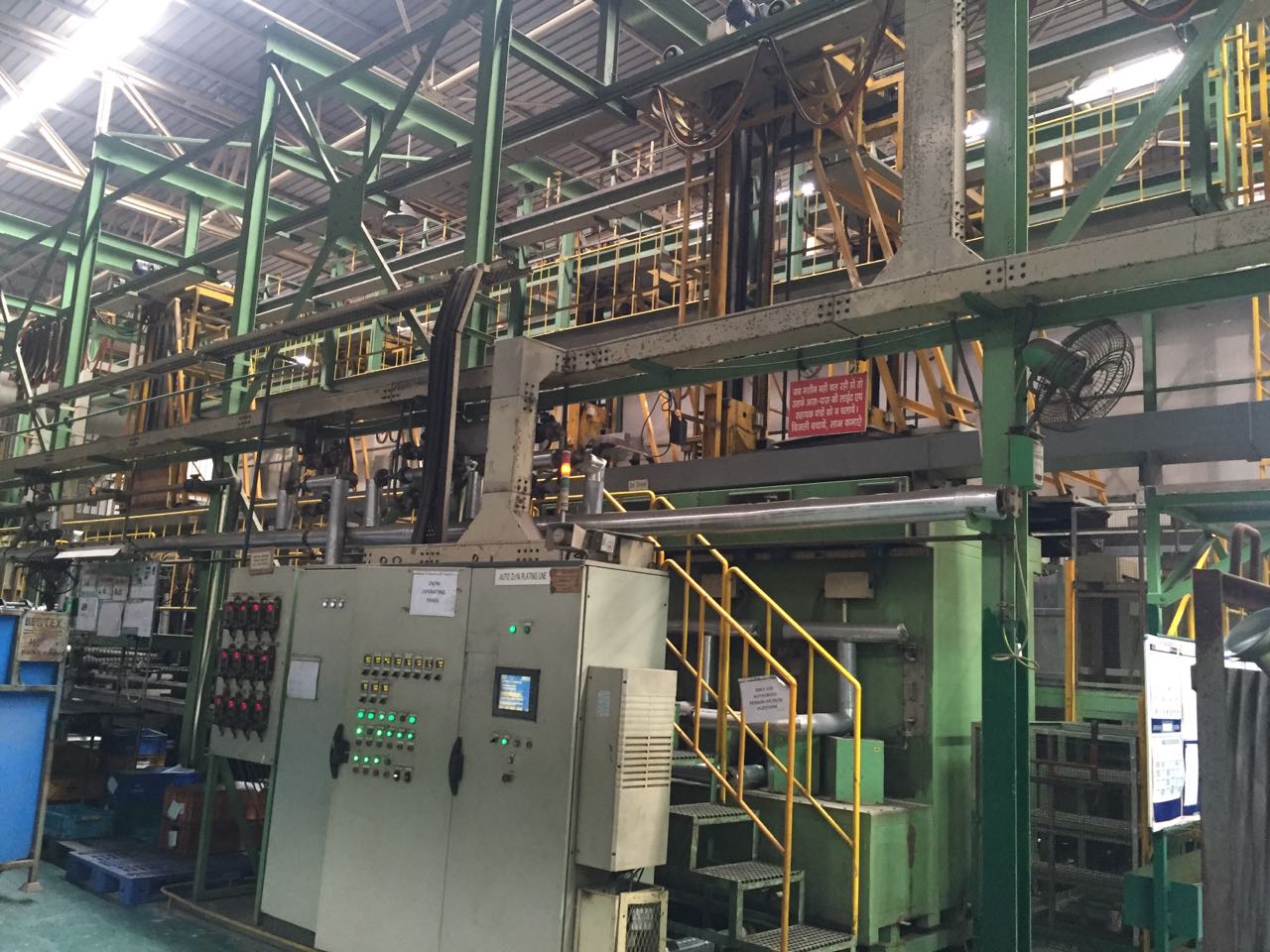

Zn-Ni ELECTROPLATING MACHINE
 Zn-Ni ELECTROPLATING MACHINE LINE
MACHINE DETAILS:
  • 5 Transporters for the material movement
  • Chiller Unit for Temperature control.
  • Boiler Unit for steam generation.
  • We are using R. O. water for all process.
  • Additional flexible anode for maintaining the inner plating thickness of pipe.
  •     Trivalent Chromium (Cr+3) passivation which is less hazardous for environment than Cr+6 passivation.
  • Scrubber Unit for treating the gases.
  • Tank Size- L-900 *  W – 1400 *  D – 1900
TESTING LAB FACILITIES:

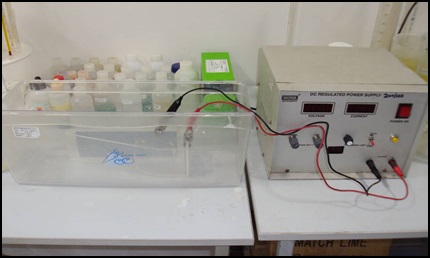

HULL-CELL-FACILITY OVEN

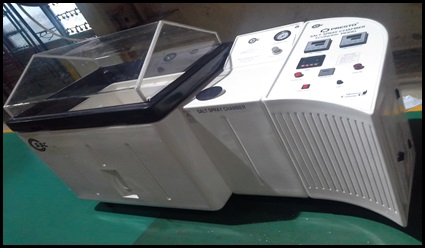

SALT-SPRAY-CHAMBER SPECTRO-PHOTO-METER

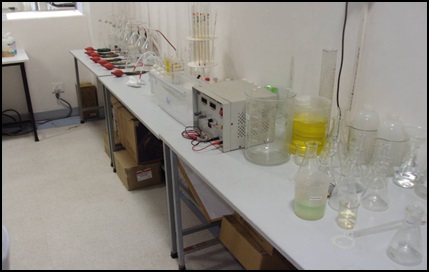

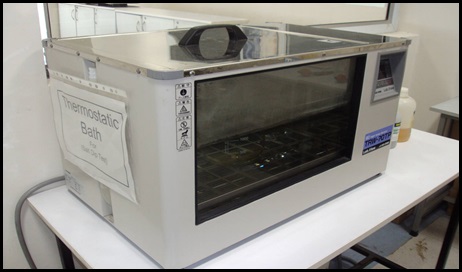

THERMOSTAT-BATH-FOR-SDT TITRATION-FACILITY

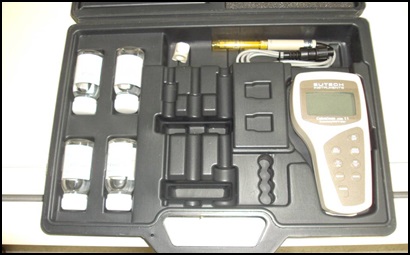

X-RAY-MC CONDUCTIVITY  & PH METER
